Stone Processing Center
Technical parameters: Model No. JX- 3 015 Processing Length 3000MM Processing Width 1500MM Working Thickness ＜ =3 5MM Max traverse speed 25000mm/min Max working speed 15000mm/min S pindle Taiwan mechan ical spindle Milling Cutter Diameter

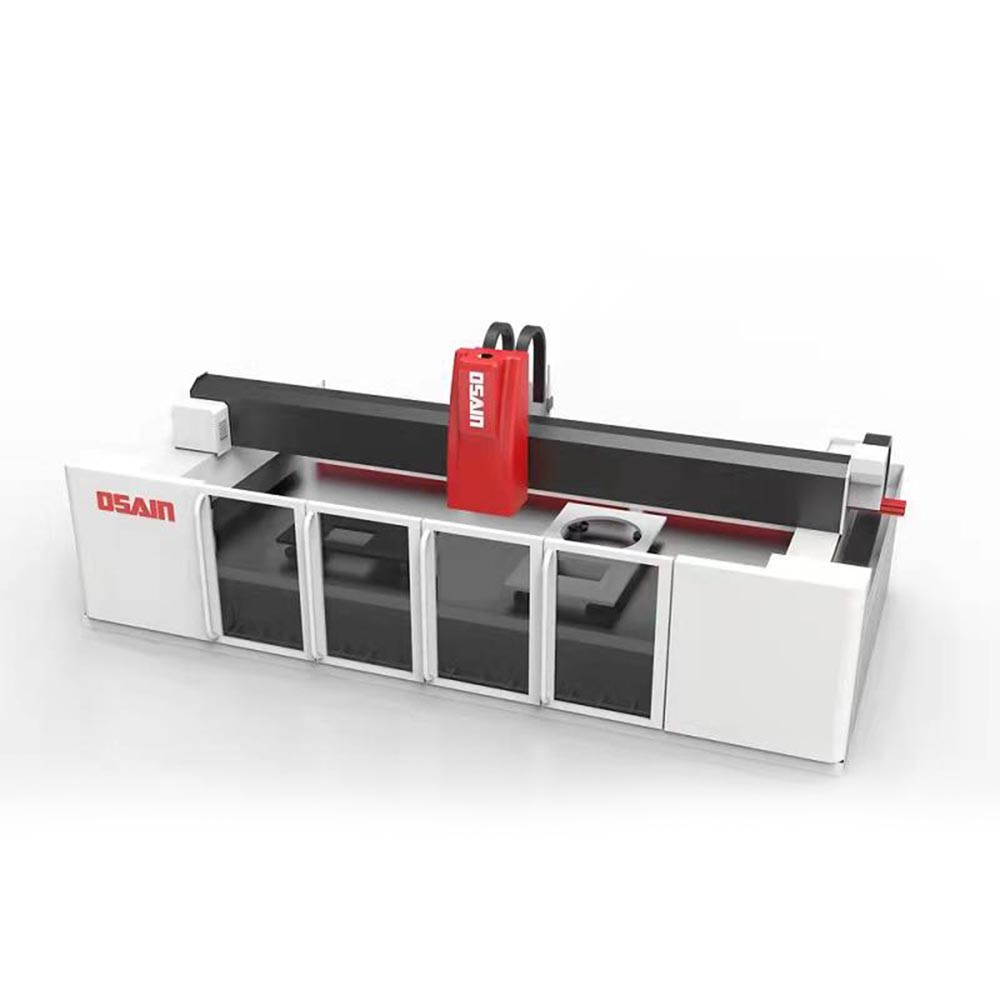

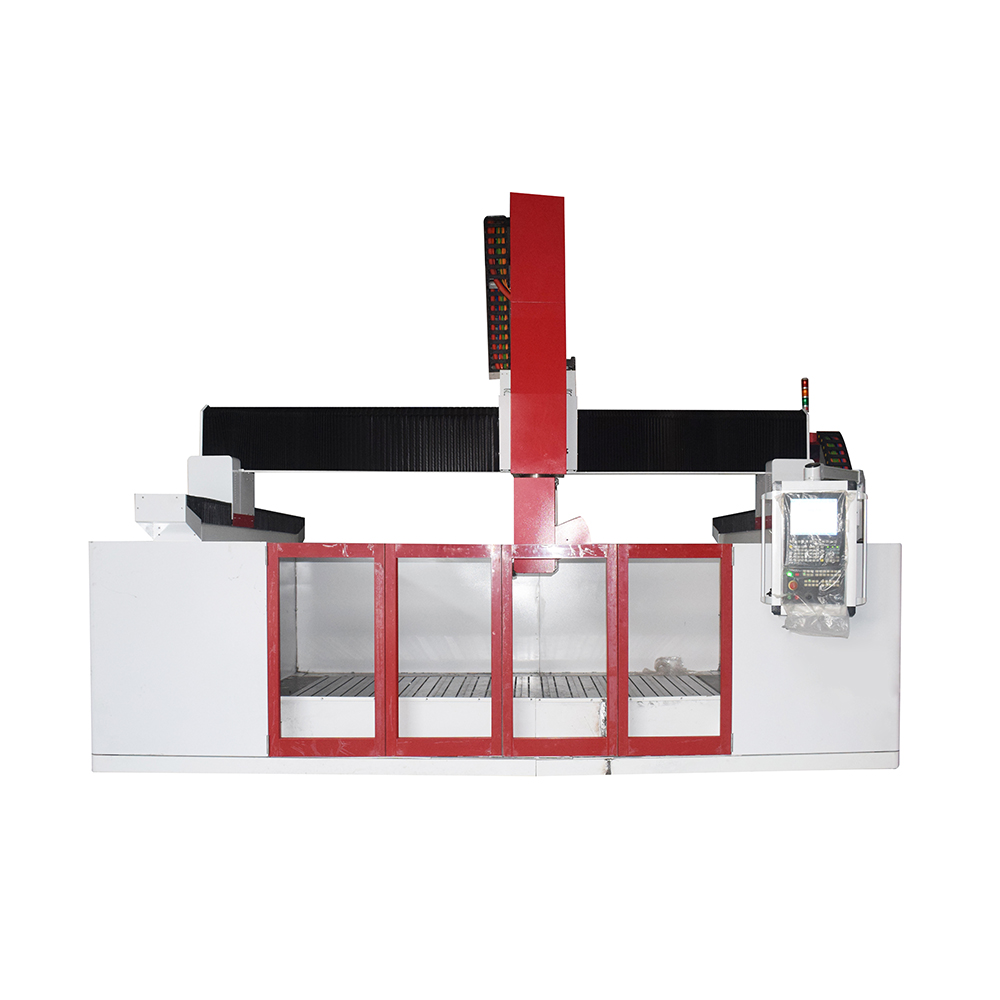

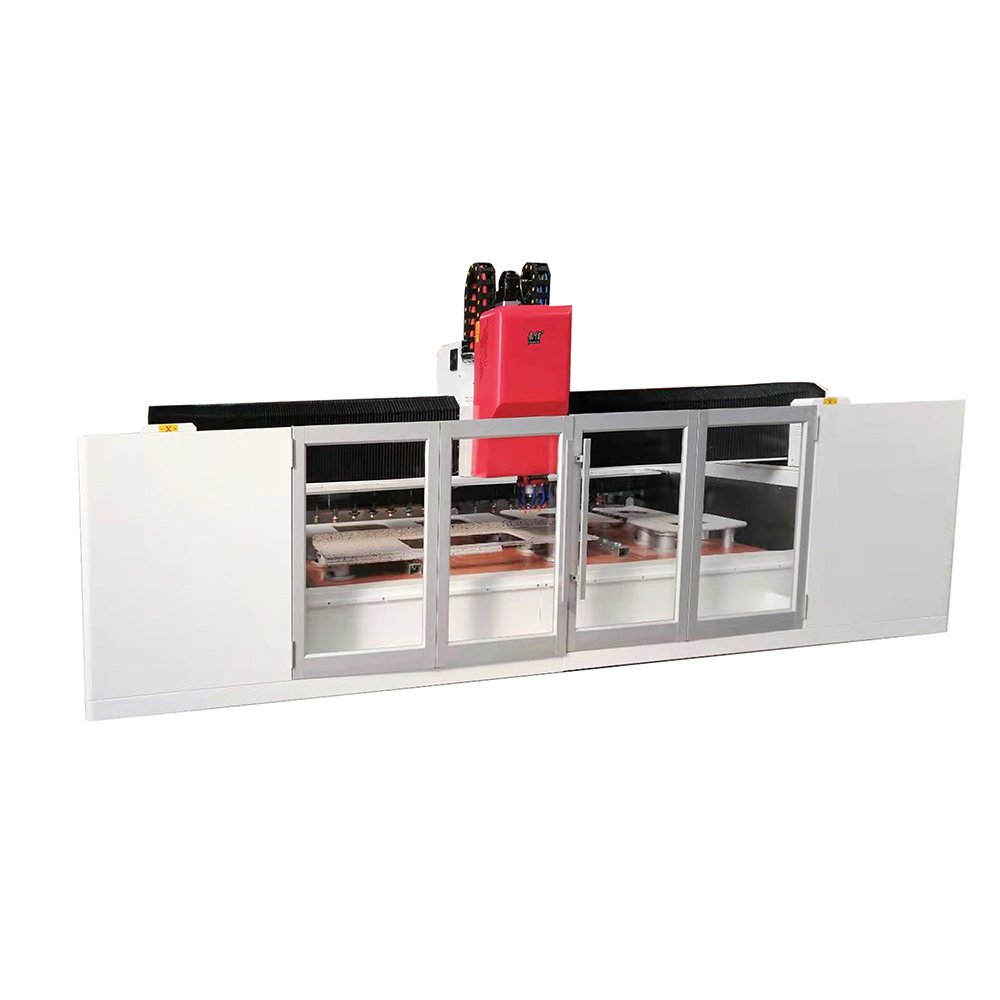

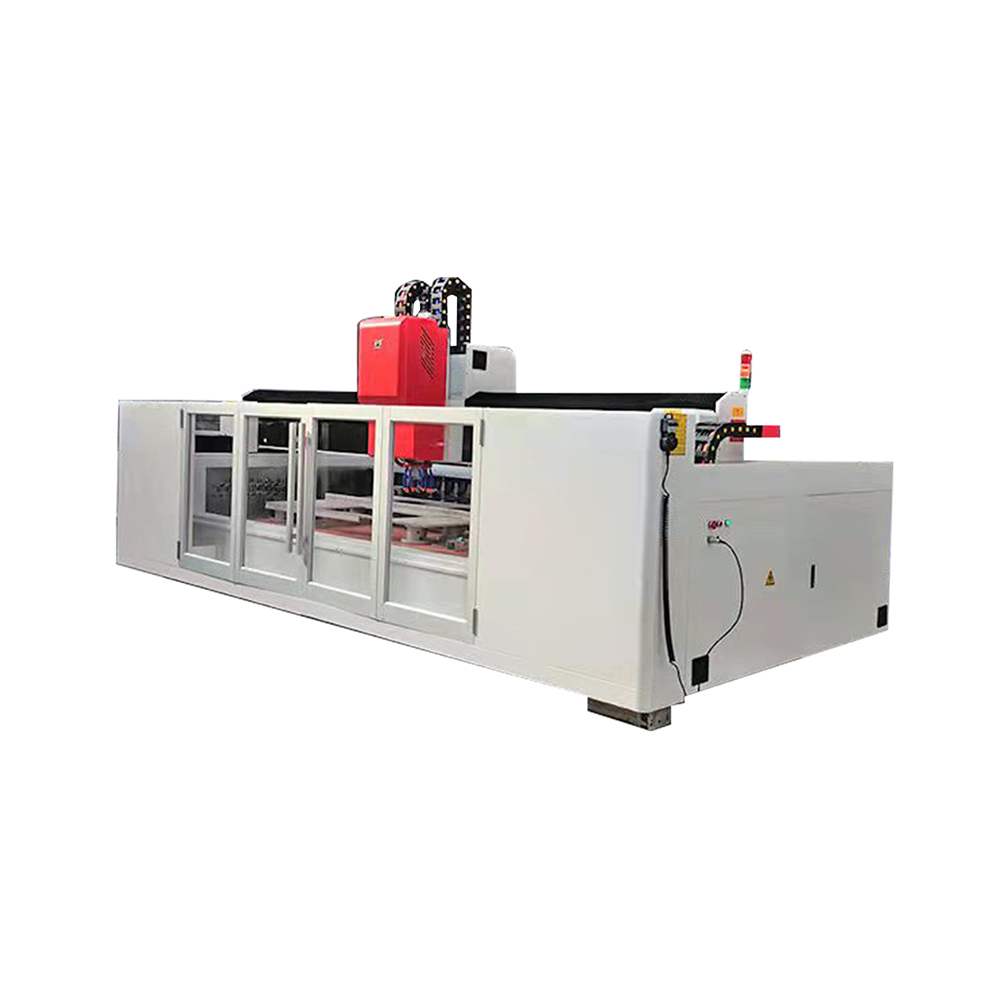

product display:
Technical parameters:
|
Model No. |
JX- 3015 |
|
Processing Length |
3000MM |
|
Processing Width |
1500MM |
|
Working Thickness |
＜=35MM |
|
Max traverse speed |
25000mm/min |
|
Max working speed |
15000mm/min |
|
Spindle |
Taiwan mechanical spindle |
|
Milling Cutter Diameter |
Φ10-Φ25MM |
|
Drilling Wheel Diameter |
Φ10-Φ50MM |
|
Shaping Wheel Diameter |
Φ60-Φ80MM |
|
Polishing Wheel Diameter |
Φ50-Φ100MM |
|
Main Motor Power |
11KW |
|
Total Power |
About 18 kw |
|
Main Electrical Apparatus |
Schneider,OMRON |
|
Max traverse speed |
25000mm/min |
|
Max working speed |
15000mm/min |
|
Spindle |
Taiwan Mechanical spindle |
|
Spindle speed |
1500-8000RPM |
|
Tool magazine |
16pcs |
|
Working voltage |
AC380V/220v |
|
Command language |
CAD to G code |

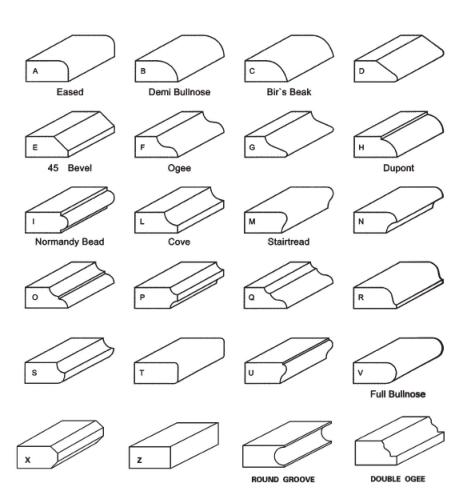

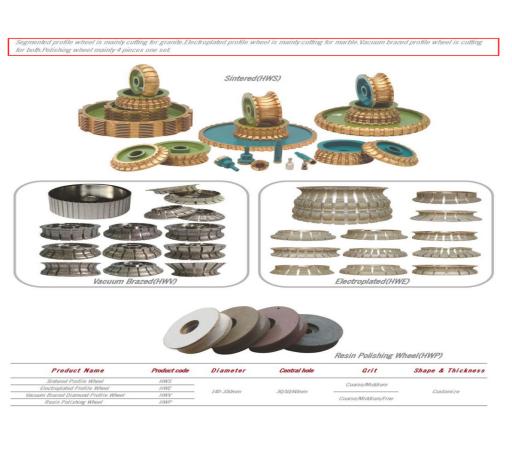

Diamond Tools: any shape tools you can customize:

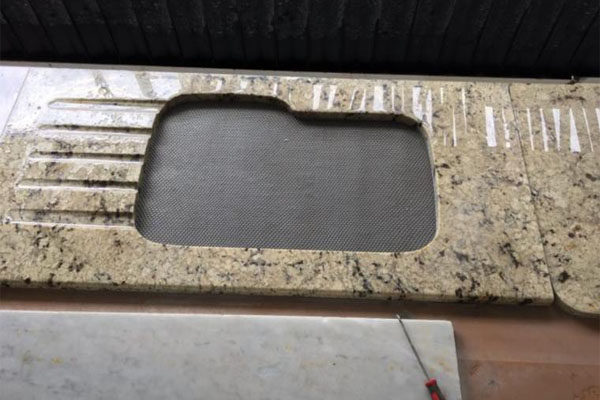

finished product display:
Video display:
