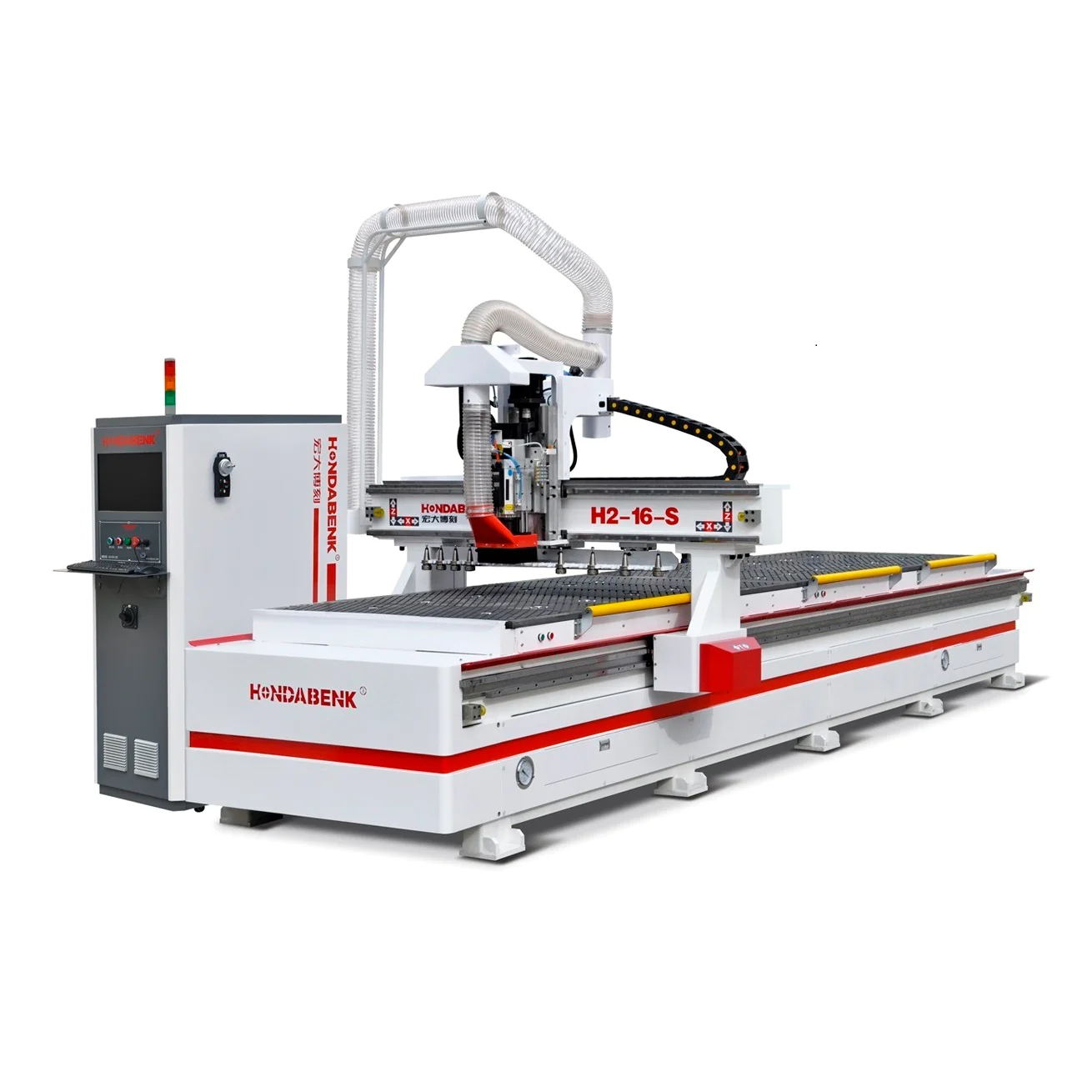

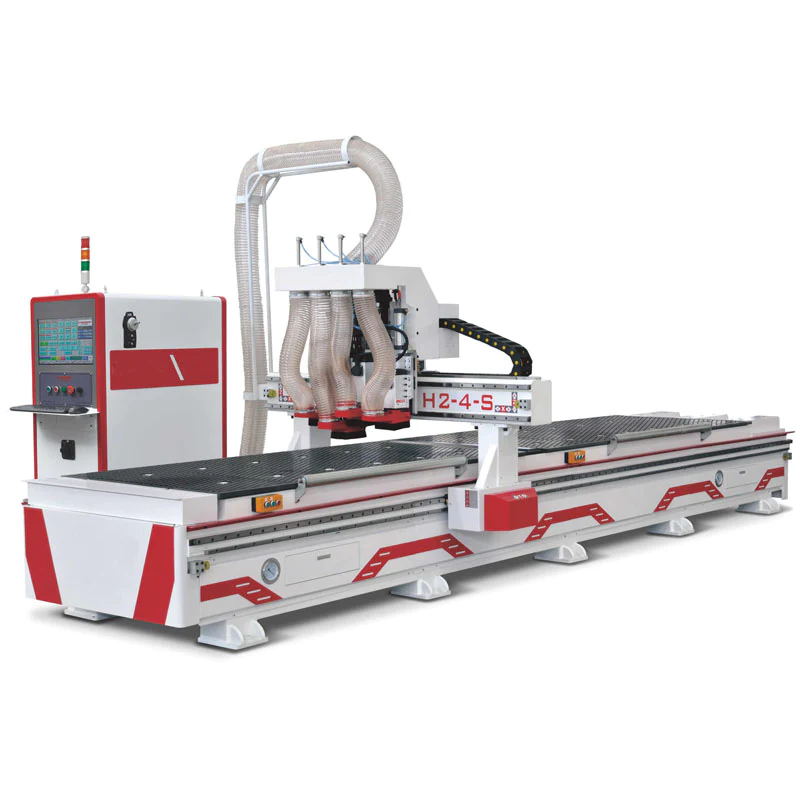

Double table cnc router for kitchen cabinet making
product display: Product parameters: Model H1/H2-4 X-Y-Z axis working area 1,220 x 2,440 x 200mm Machine size 2,100 x 3,800x2300mm Repositioning resolution 0.02mm X-Y movement rack and pinion, gear drive Z movement ball screw drive/Taiwan G
product display:
Product parameters:
| Model | H1/H2-4 |
| X-Y-Z axis working area | 1,220 x 2,440 x 200mm |
| Machine size | 2,100 x 3,800x2300mm |
| Repositioning resolution | 0.02mm |
| X-Y movement | rack and pinion, gear drive |
| Z movement | ball screw drive/Taiwan |
| Guide Linear | 25 square/Taiwan |
| Max. speed | 45,000mm/min |
| Max. cutting speed | 35,000mm/min |
| Spindle power | 6.0KW air cooling spindle |
| Spindle speed | 18000rpm |
| Inverter power | 7.5kw |
| Drive motors | YASKAWA servo motor 850W |
| Working voltage | AC220V/380V/50-60Hz, 3-phase |
| Command code | G code |
| Computer interface | USB 2.0 |
| Table | vacuum table with 5.5kw pump |
| software compatible | VCarve/UcanCAM/ArtCAM,etc. |
| controller | Syntec 6MB |
| pop up pins | x-axis 2 pcs y-axis 3 pcs |
